KPower Industries E30 K Swap Package

KPower Industries E30 K Swap Package

Regular price $7,500.00 CAD
Regular price Sale price $7,500.00 CAD
Sale Sold out

KPower Industries Honda K series swap package for the BMW E30 chassis is designed for competitors and enthusiasts who demand the highest quality engine swap components for their builds.

Having just converted our NC to K24 power using KPower's kit, we decided we wanted to help our fellow Canadians experience K24 power in a few of our favourite RWD chassis', so we're now an official Distributor for KPower Industries! (which means our price in Canadian dollars, including shipping and taxes, represents your true final cost since we've already imported the parts into Canada).

Why is the K series engine platform so desirable for the E30 chassis? It’s simple - KPower followed in the footsteps of the BMW M division by pairing the lightweight and nimble E30 chassis with a high revving four cylinder, like the original E30 M3, which dominated motorsports in its day. Sure, you can shoehorn a larger inline six into the E30, but sticking with a four cylinder stays true to the balance and spirit of the car.

Our recommended engine for most builds is the K24A2 from the 2004-2008 Acura TSX, or the equivalent JDM K24A engine with RBB cylinder head. See below for all compatible engine blocks.

For a detailed breakdown of KPower's E30 swap package, as well as a thorough write-up of every component included, check out their blog post here

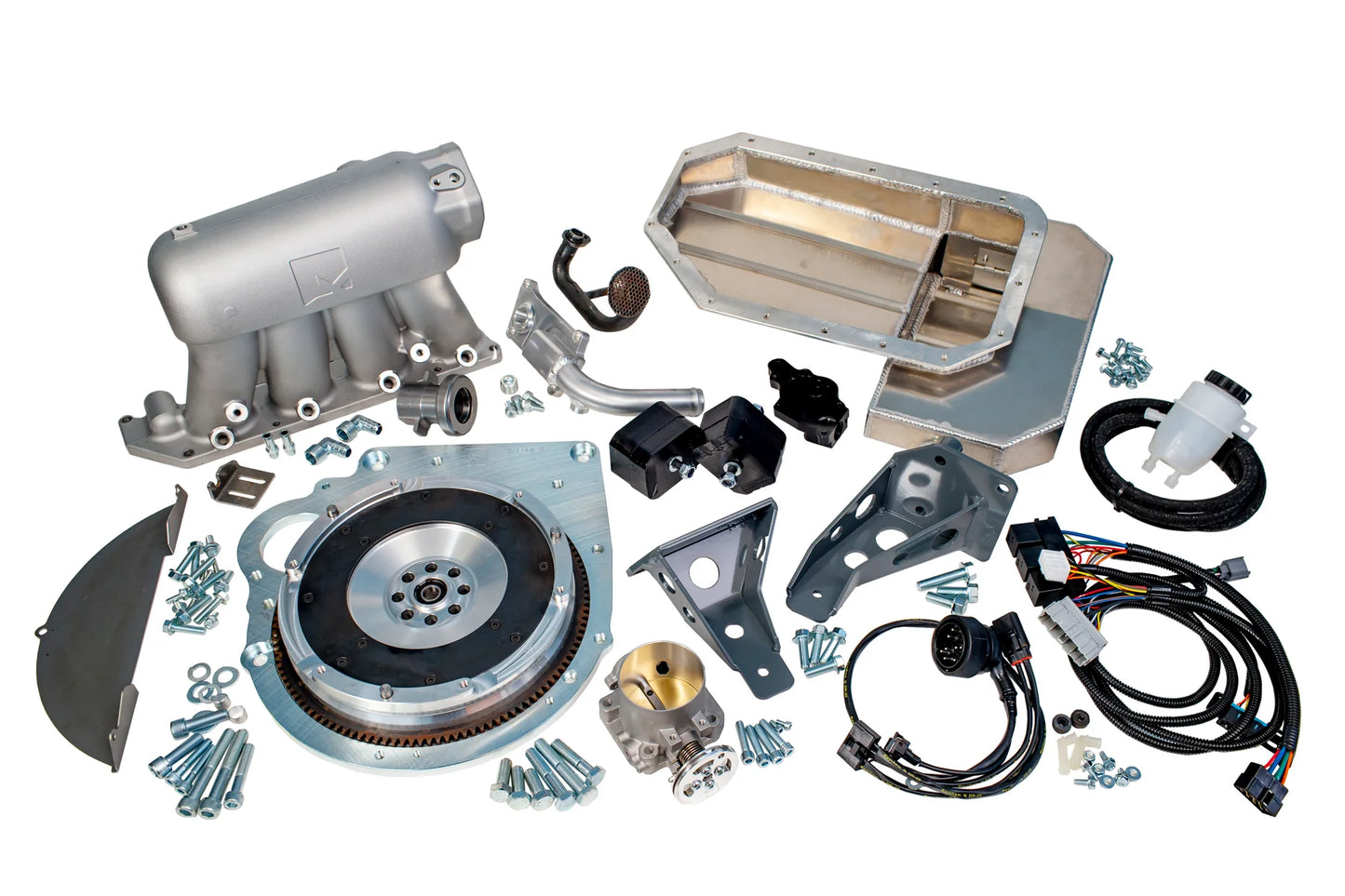

This swap package includes:

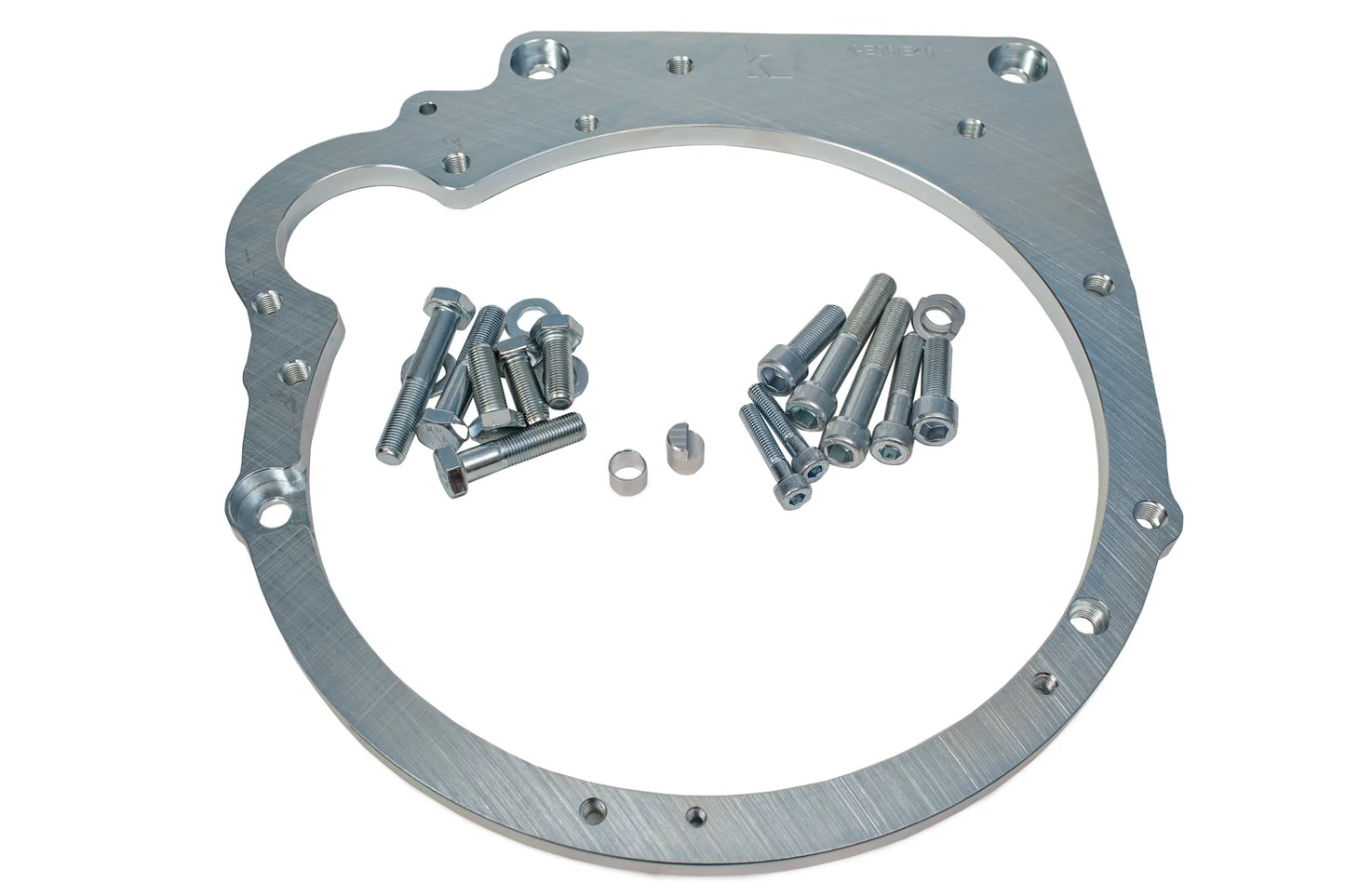

  • K to Getrag 260 or K to E36/E46 transmission adapter plate

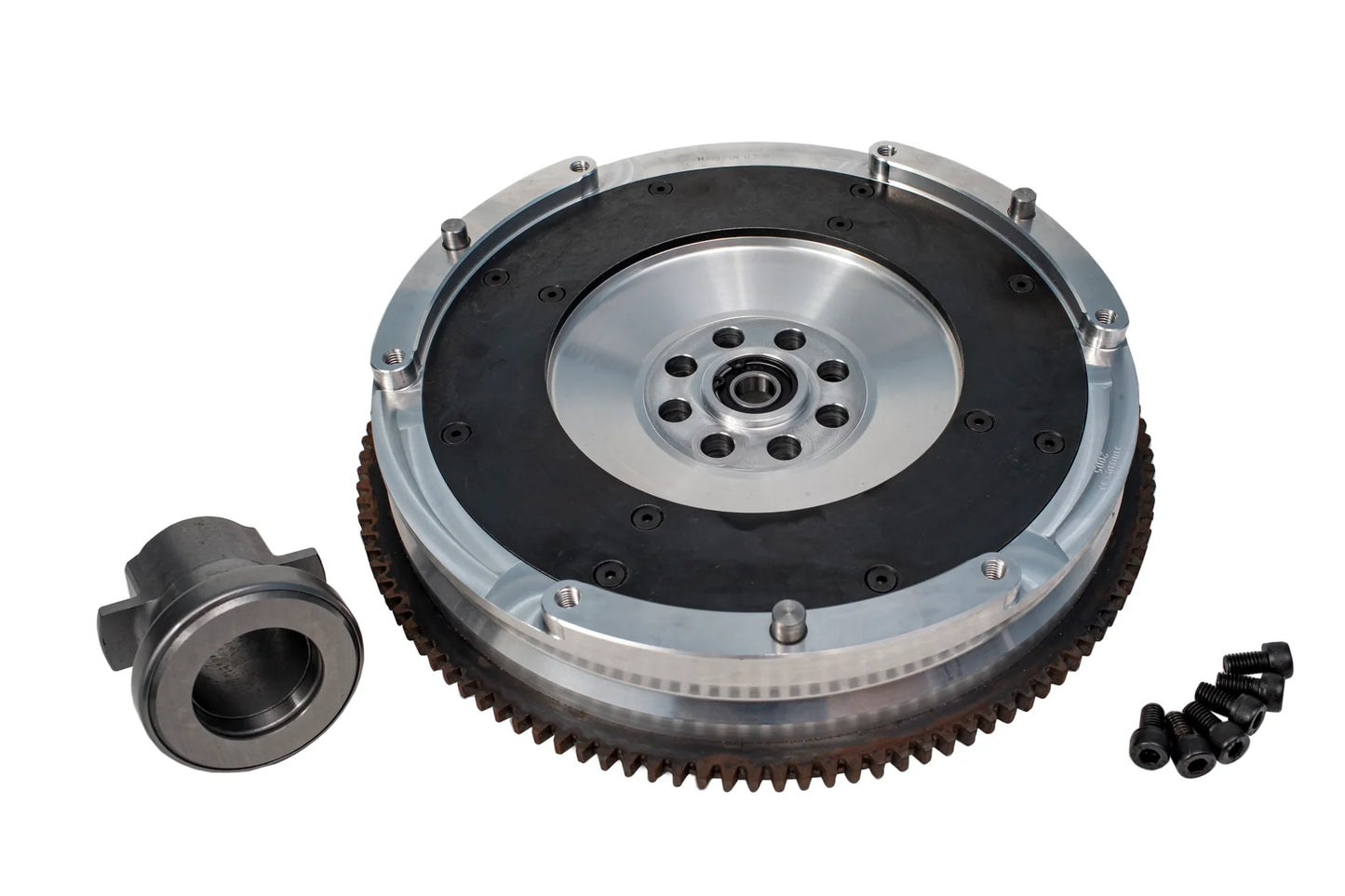

  • K to BMW 5-speed aluminum flywheel
  • Custom extended Tilton release bearing

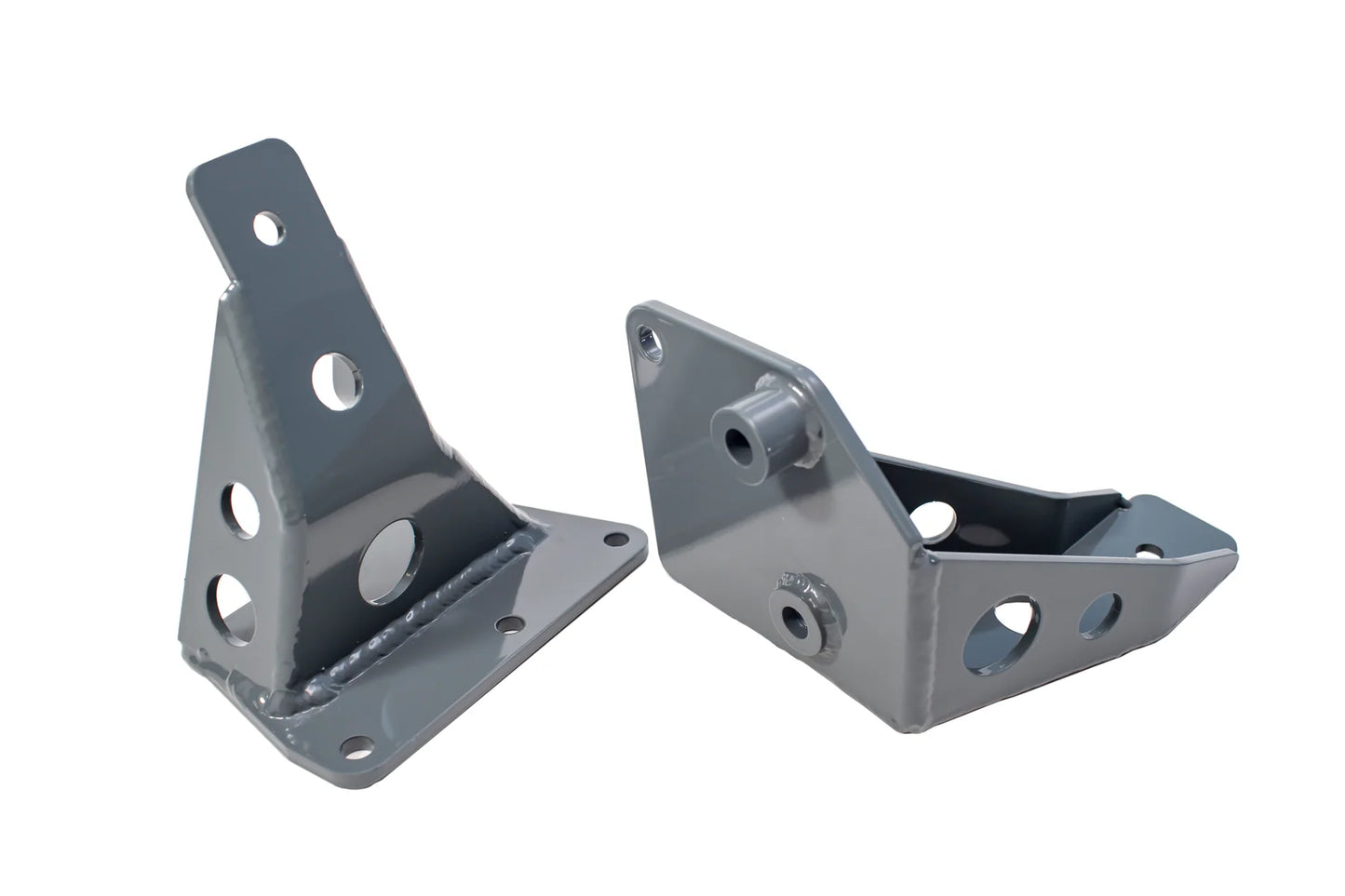

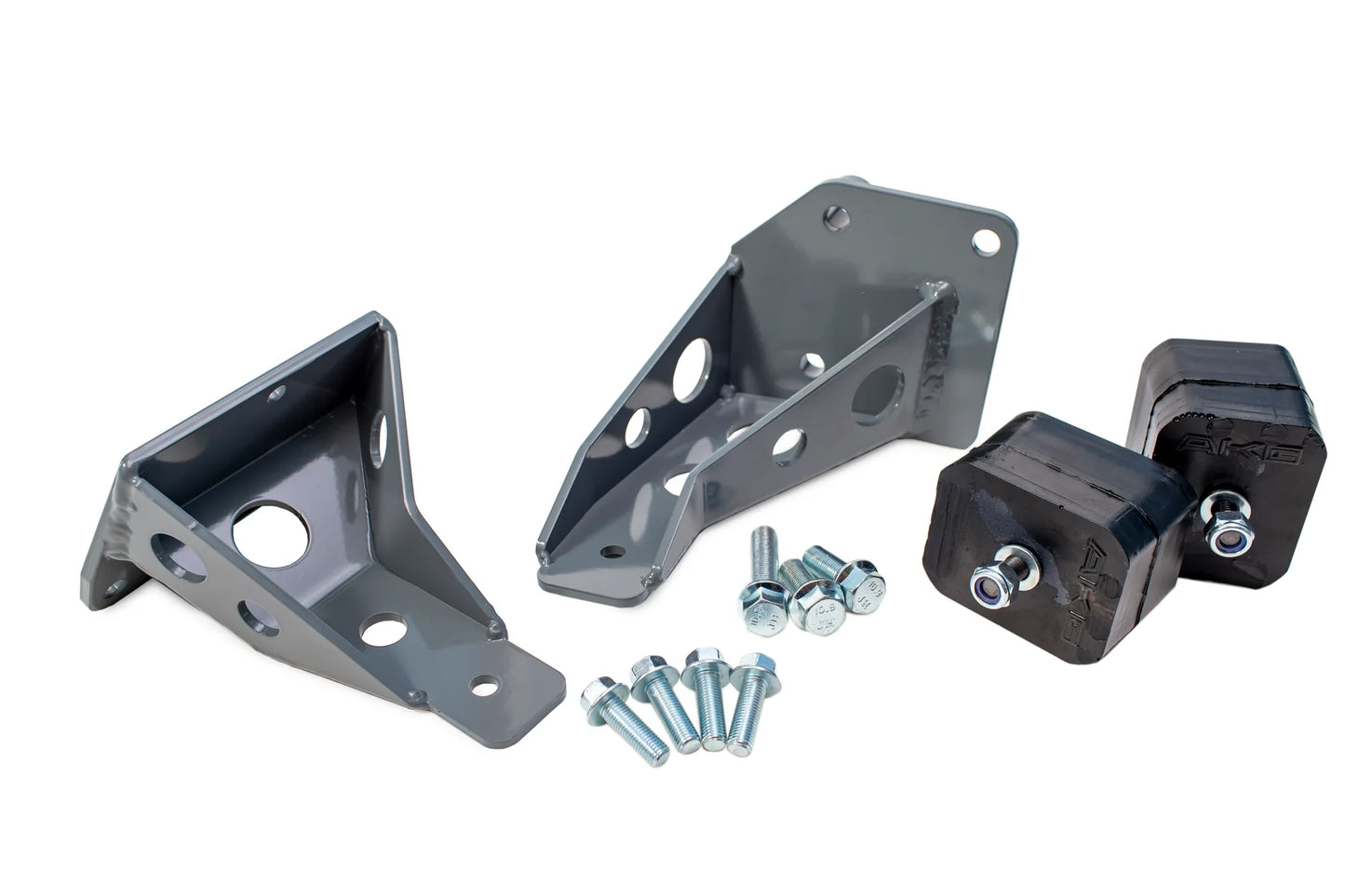

  • 3/16” laser cut steel engine mount arms
  • AKG Motorsport polyurethane engine mount pads

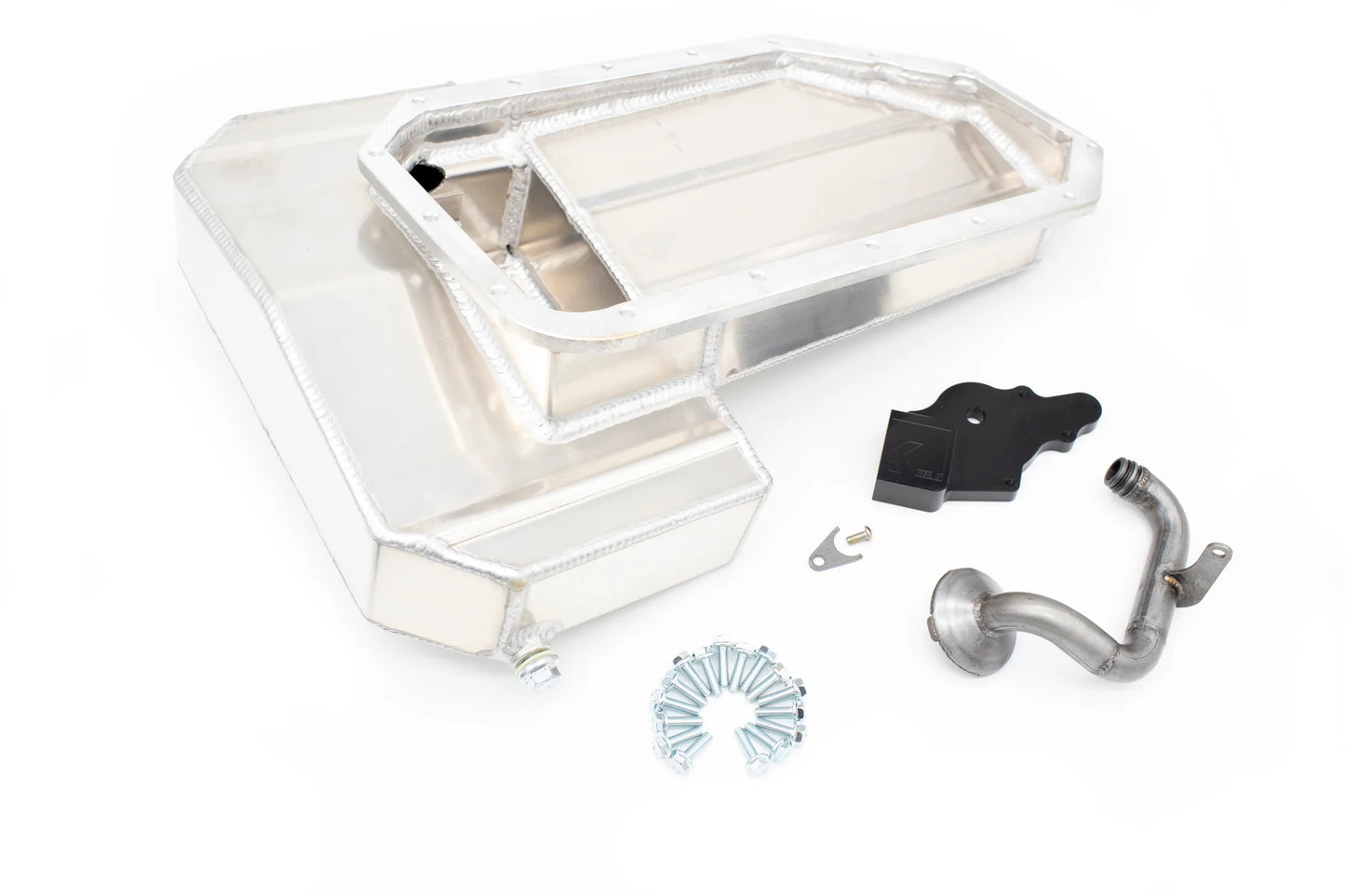

  • Aluminum V2 E30-specific front sump baffled oil pan
  • Machined aluminum V2 K20 oil pump adapter

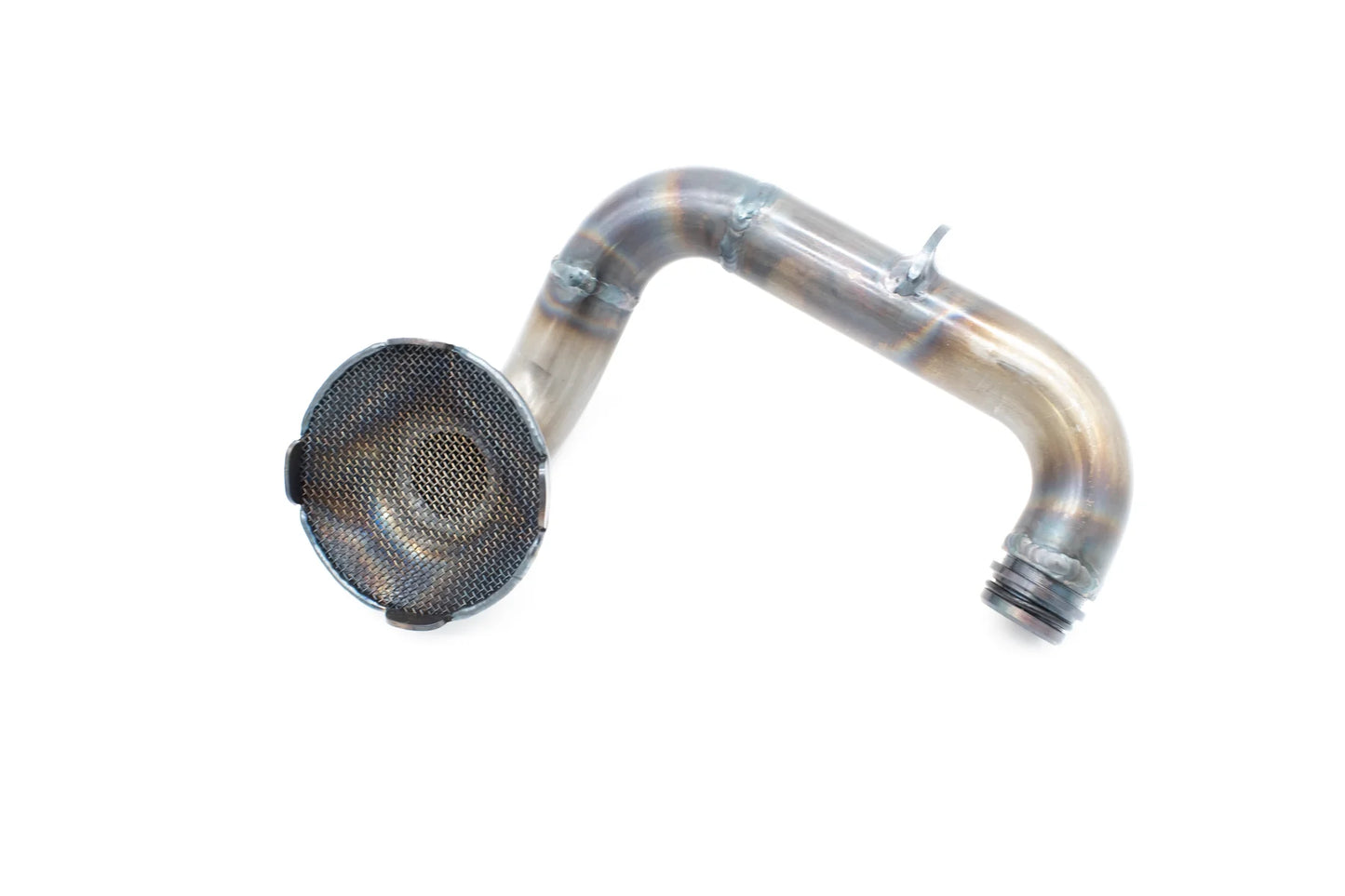

  • ⅞” V2 steel pickup tube

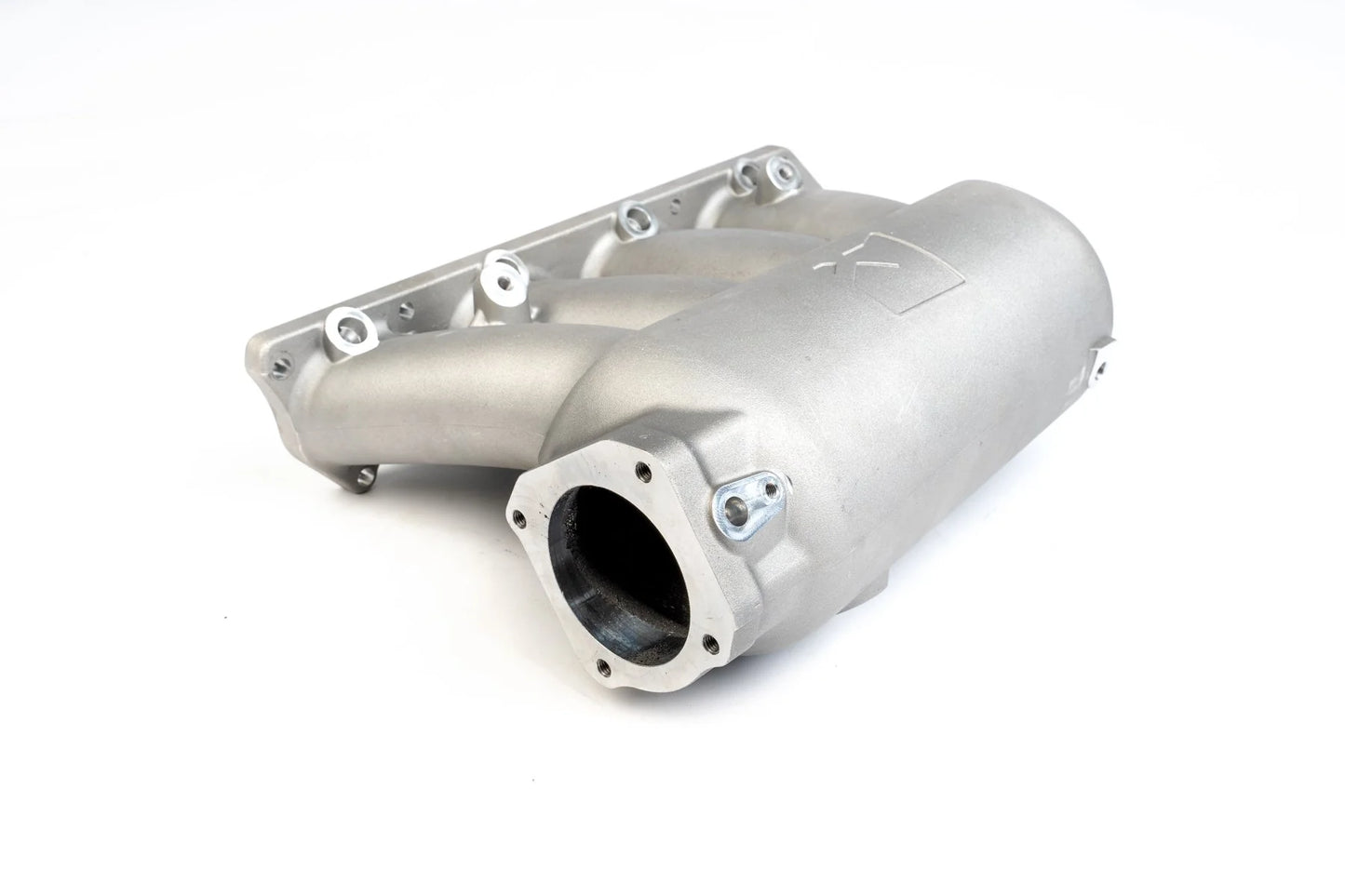

  • KPower cast RWD intake manifold with all hardware

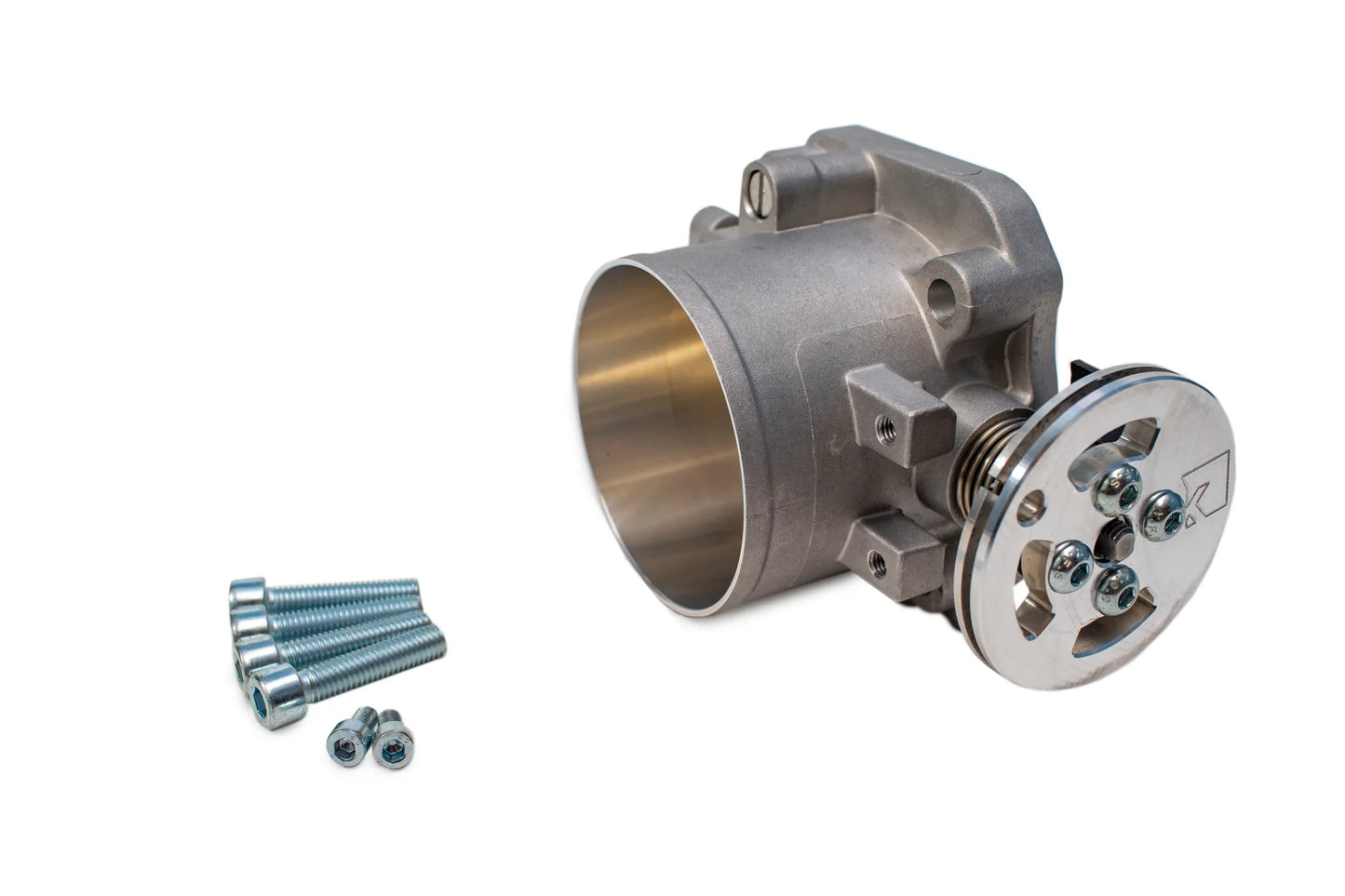

  • 74mm throttle body with E30-specific throttle cable wheel

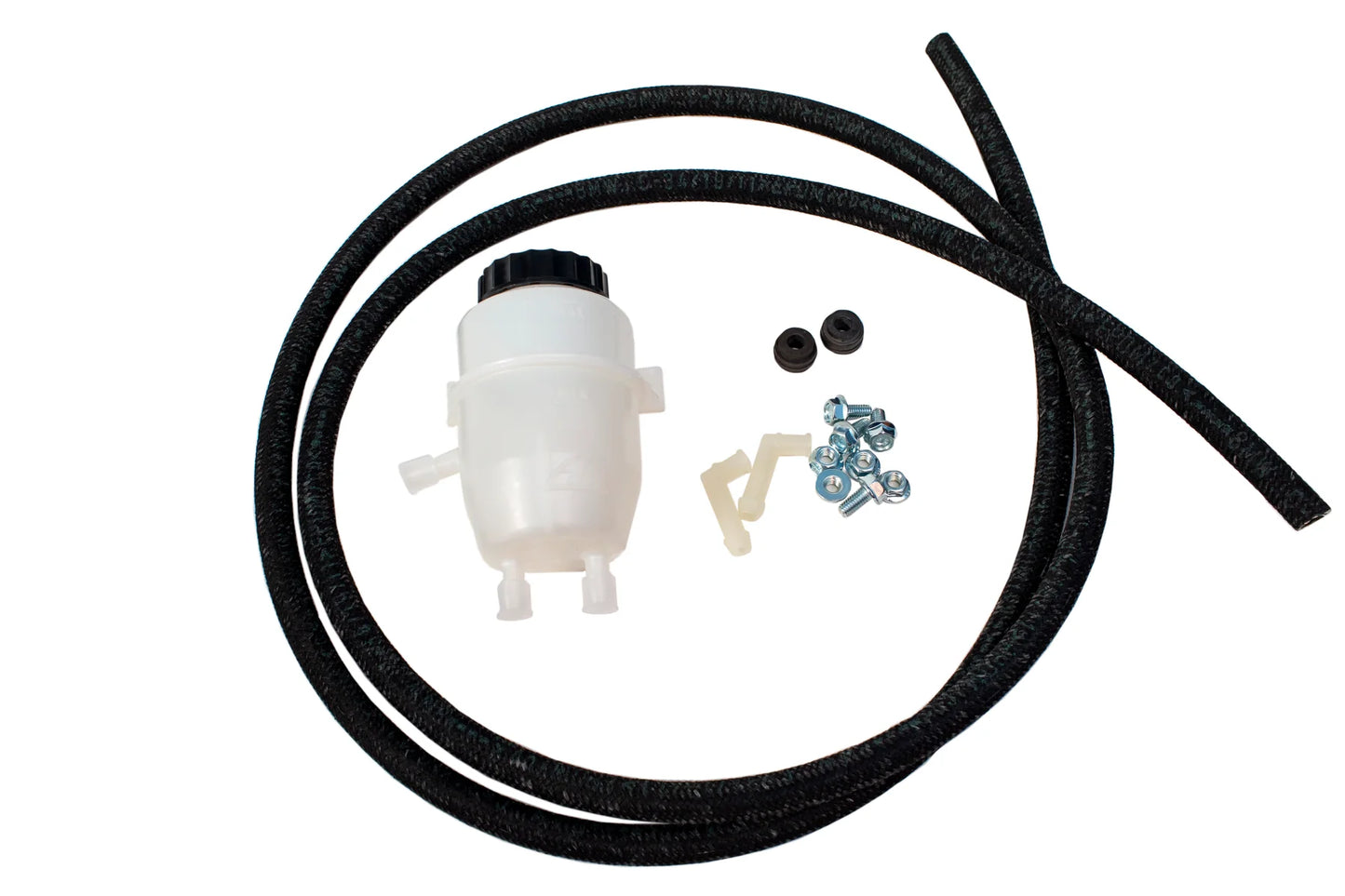

  • Remote brake/clutch fluid reservoir kit with N15 Design bracket

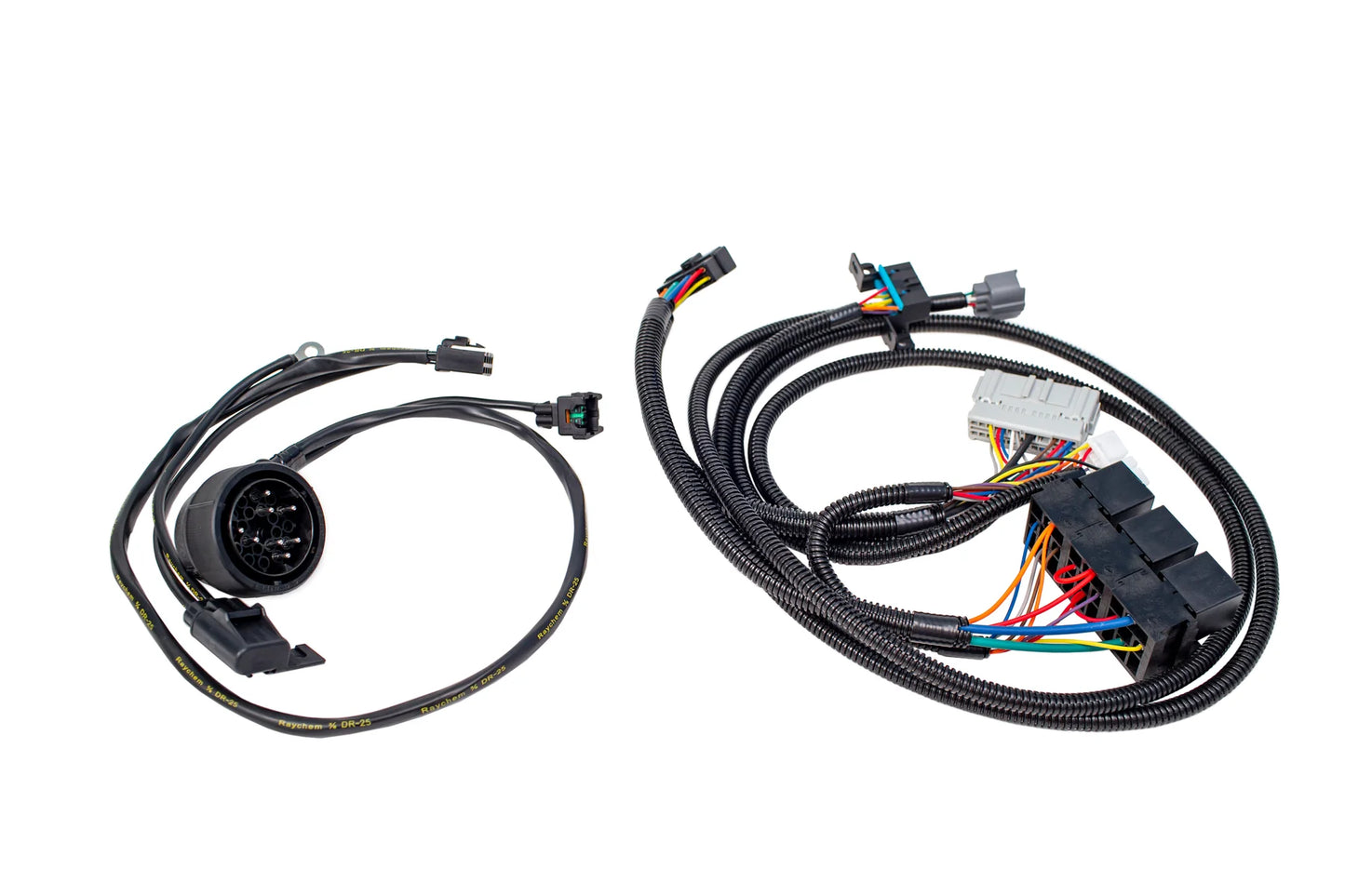

  • Plug and play K to E30 wiring conversion harness

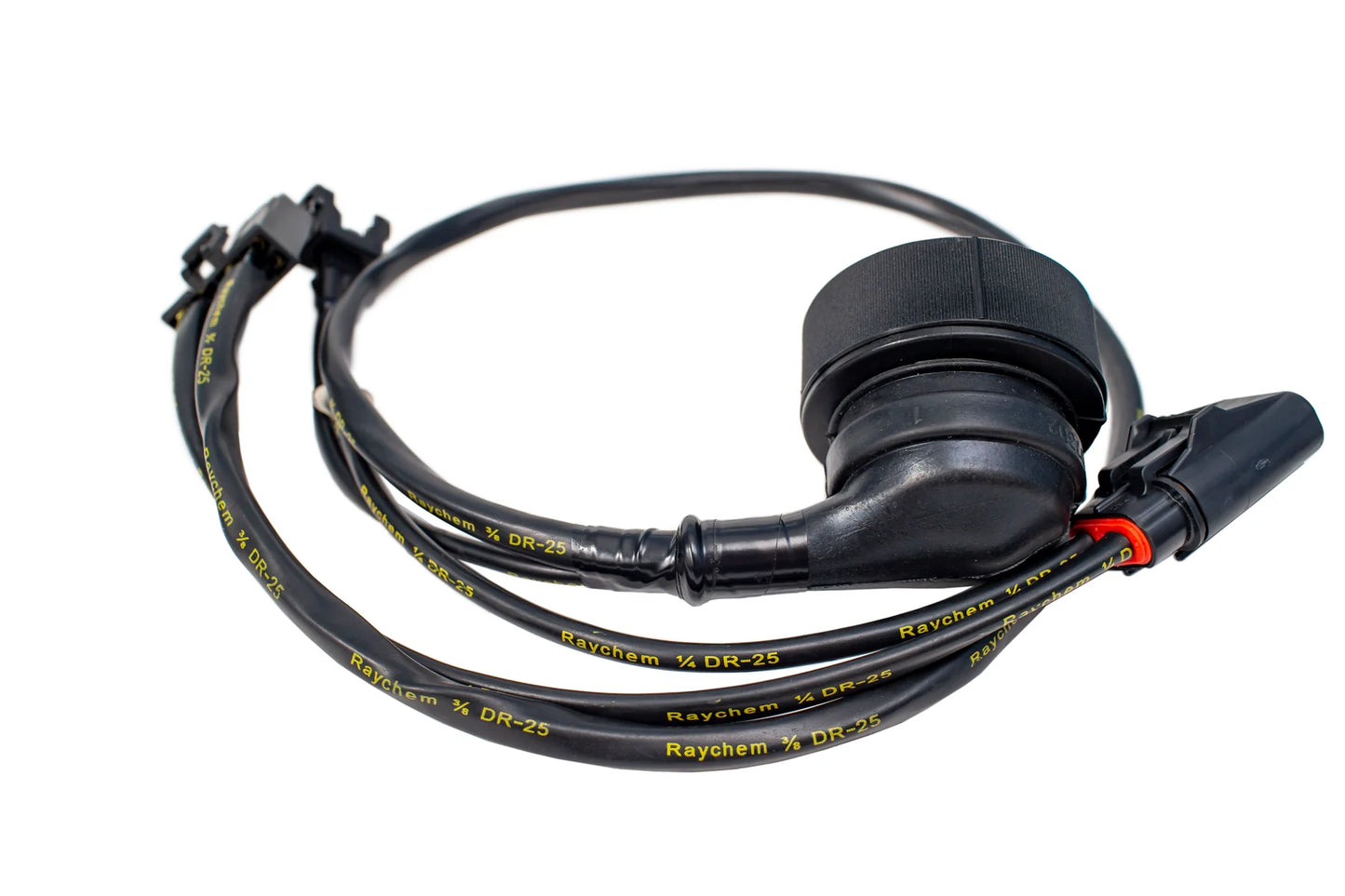

  • Plug and play motorsports grade C101 sub-harness

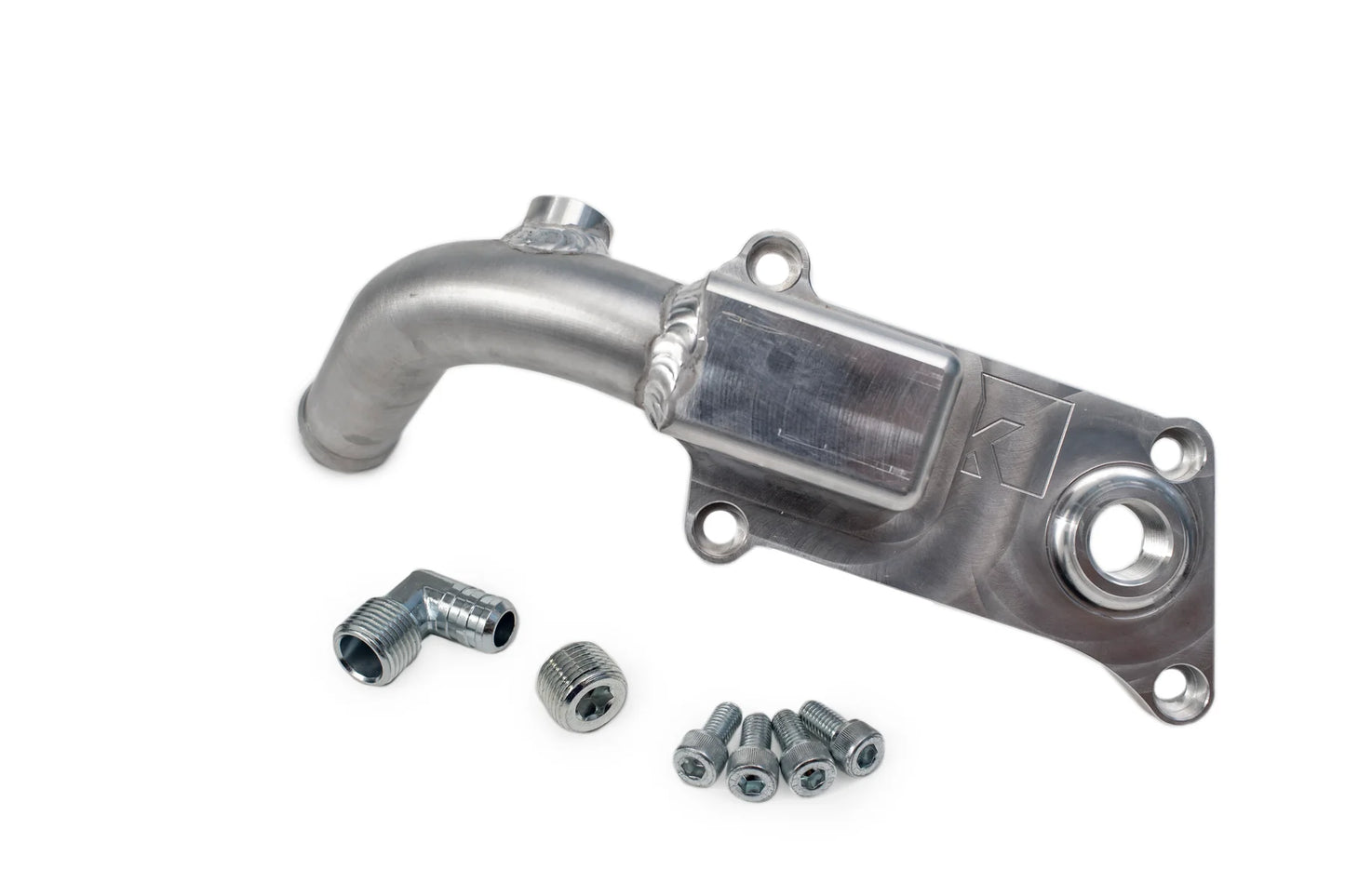

  • E30-specific upper coolant neck with E30 temperature sender port
  • All new hardware for oil pan, manifold, engine mounts, and more

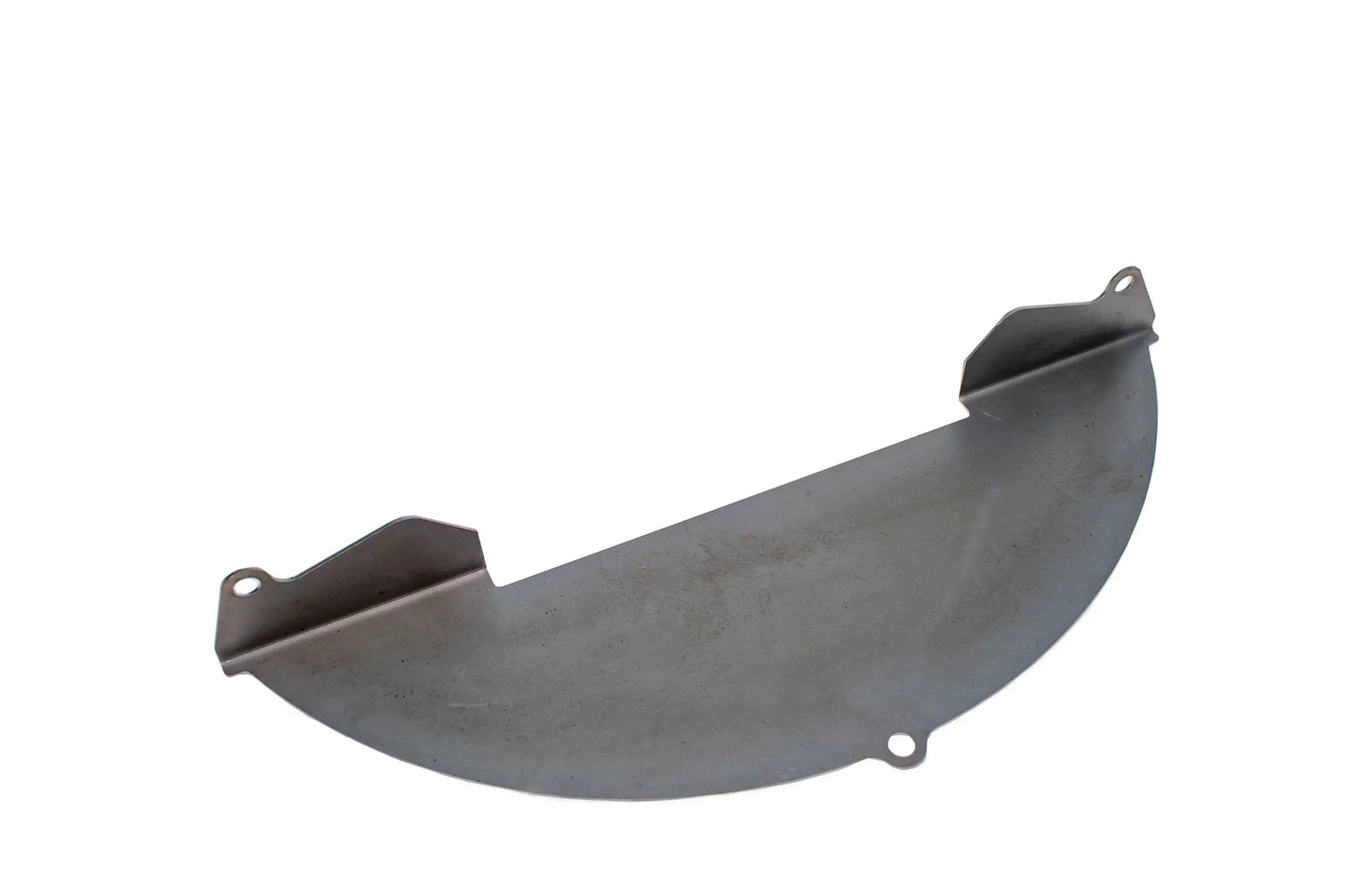

  • Flywheel dust shield
  • Detailed installation instructions (available for download here)

A K20 oil pump is required to run our oil pan and pump, available separately. We also recommend running a BMW Z3 steering rack for a much quicker steering ratio and also more clearance around the oil pan.

Yes, this swap is also compatible with right hand drive (RHD) vehicles.

Notes:

These engine mounts fit the following engine blocks: K24A2, K24A3, K24A4, K24A8, K20Z3 and the JDM K24A. They do NOT fit K20A2, K20Z1, or K24A1 blocks due to incompatible bolt hole locations on the left side of the block. Please make sure you source the correct block for your project.

Due to current demand, please allow 30-60 days for delivery.
