KPower Industries K-Series Timing Cover Oil Baffle

In K-series road racing applications, high G-forces pushes oil from the pan up into the timing chain cover and can result in oil pressure loss. In FWD applications this happens during sustained left hand turns, but it's an especially prevalent problem in RWD vehicles in long braking zones with high G-forces.

The KPower timing cover baffle solves this issue by preventing oil from entering the timing cover and thus keeps more oil in the pan and around the pickup.

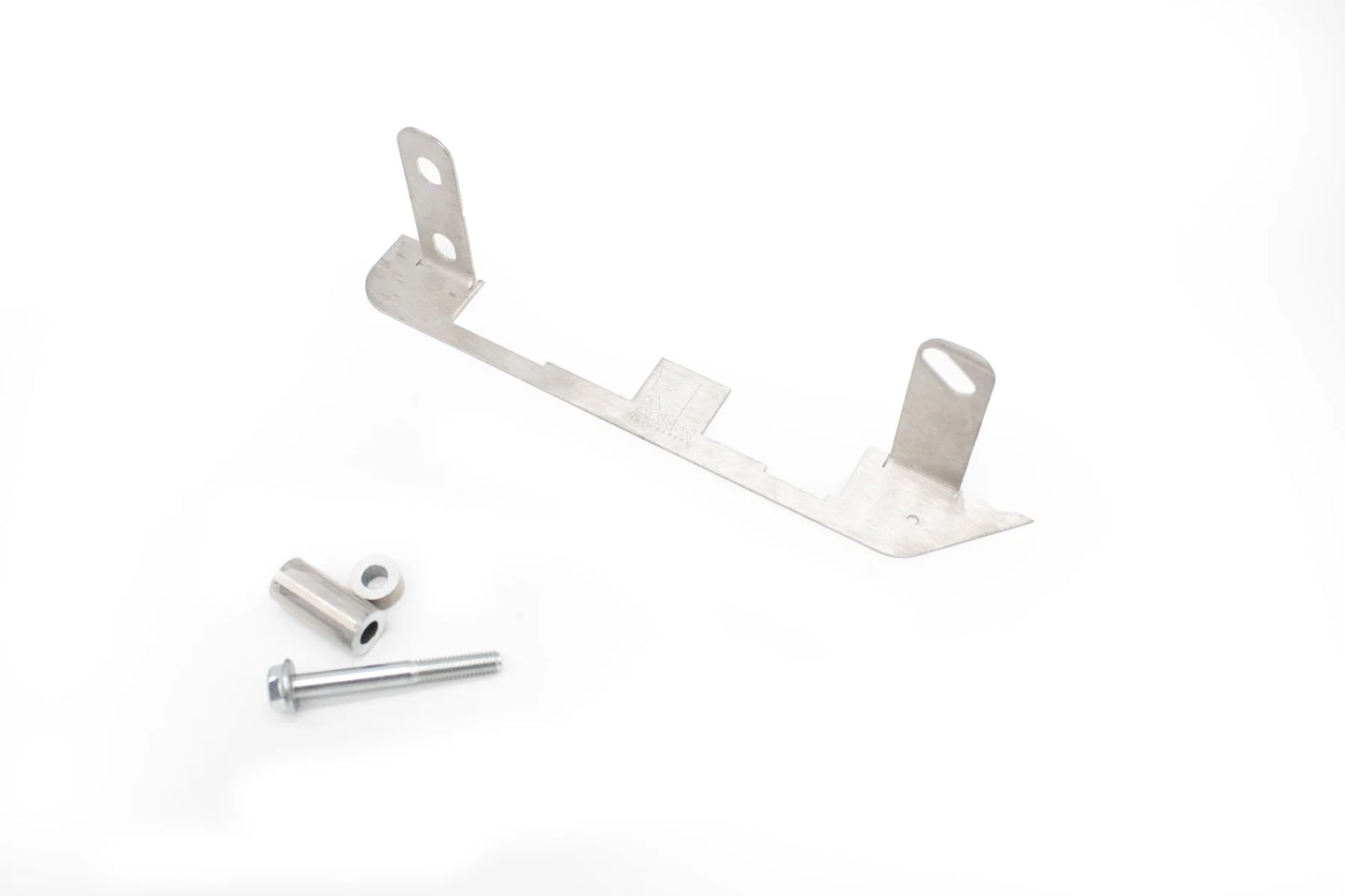

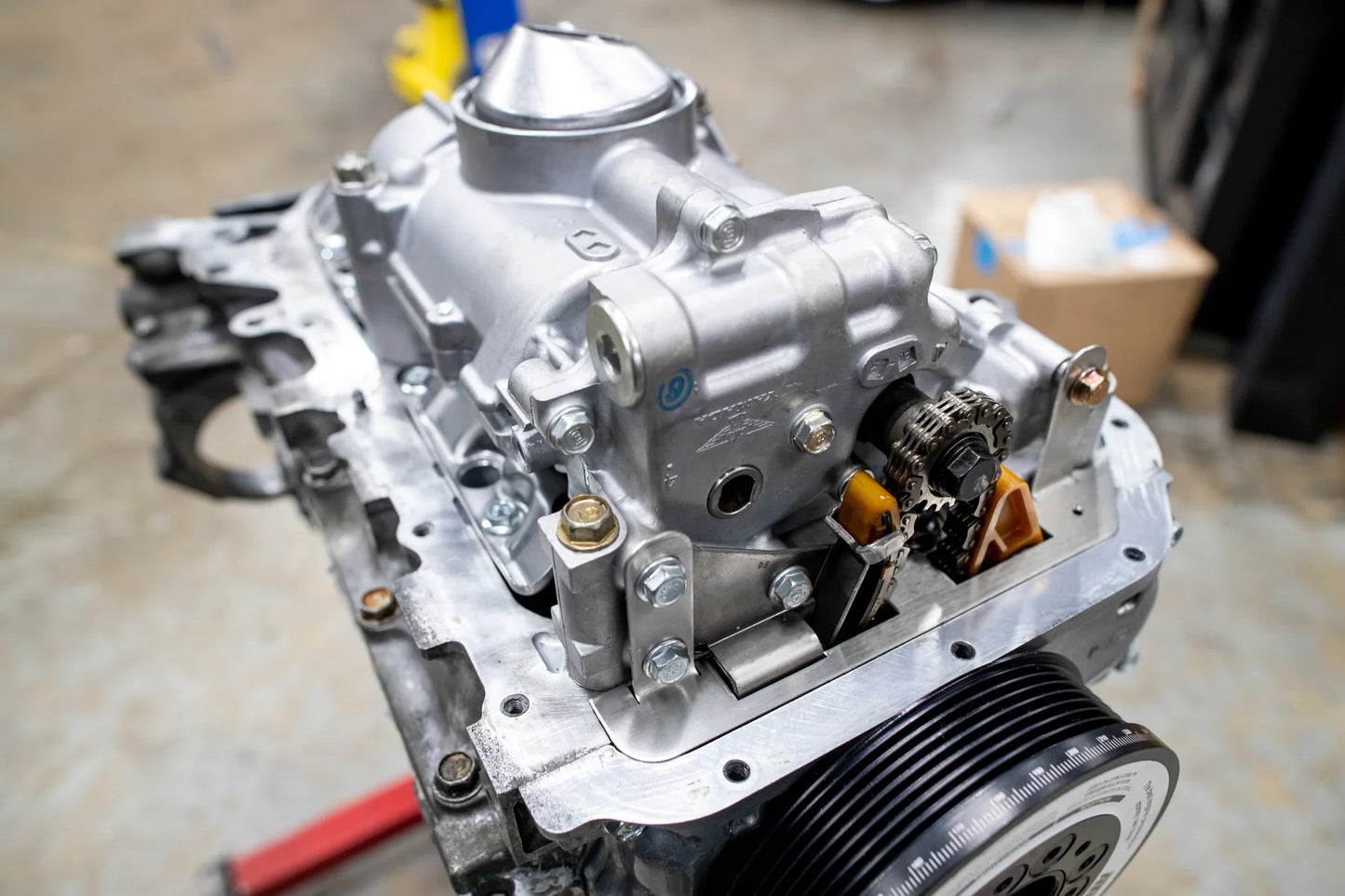

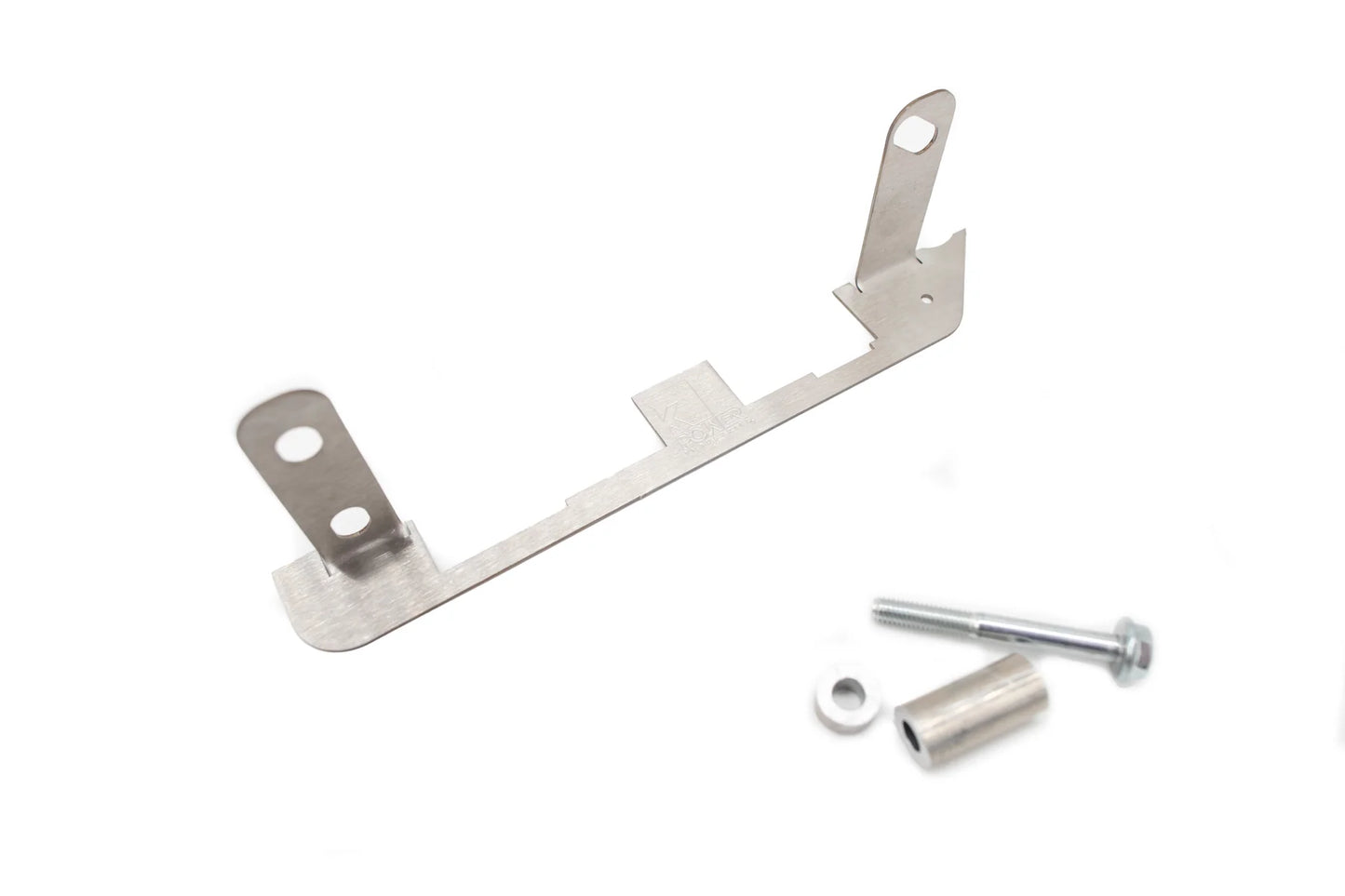

This laser-cut stainless steel unit bolts directly to either a K20 or K24 oil pump and fits the profile of an OEM steel oil pan and most sheet metal aftermarket pans. A longer M6 bolt and spacers are also provided. Since the exact dimensions of aftermarket oil pans can vary slightly, the edge of the baffle may need to be trimmed to fit your specific oil pan.

We highly recommend this inexpensive upgrade for any K-series car that sees track duty, regardless of oil pan or drivetrain configuration!
