KPower Industries has done it again! Another all-in, complete engine swap package for the K series, this time for the popular NC chassis (2006-2015 Mazda MX5, manual transmission only). Having just used this kit to convert our NC to K24 power, we decided we wanted to help our fellow Canadians experience this incredible combination of engine and chassis, so we're now an official Distributor for KPower Industries! (which means our price in Canadian dollars, including shipping and taxes, represents your true final cost since we've already imported the parts into Canada).
Thanks to the NC chassis coming from the factory with a four cylinder engine with the exhaust ports on the right side of the engine bay, the packaging on this K24 swap is the cleanest yet! Learn more about what makes this swap so special and refined in KPower's blog post here. This swap retains the factory transmission and power steering system for an OEM level of refinement, with an optional A/C upgrade and more.
This package provides all aftermarket parts for a complete K24A2 conversion in your vehicle, including all of the required electronics. Just add an engine, some OEM parts, and some assembly time, and your NC will be transformed into the car it should have been from the factory.
If you’d like to build your own kit to meet your needs better, please check KPower Industries website for their smaller NC packages, let us know exactly what parts you want to order, and we'll get you an accurate price in Canadian dollars that includes taxes and shipping to your doorstep. No stress about credit card fees for paying in US dollars, no surprise brokerage or customs fees, just the parts you want shipping to you from our Canadian warehouse in Hamilton, Ontario.
This swap package includes the following products:
- K24 to NC manual transmission adapter plate (5 or 6-speed)
- K24 to NC aluminum flywheel, 12.5 lb.
- Tubular steel subframe, powder coated
- Steel engine mount brackets, powder coated, with hardware
- Cast aluminum KPower intake manifold
- IACV blockoff plate and hardware
- MAP sensor plug

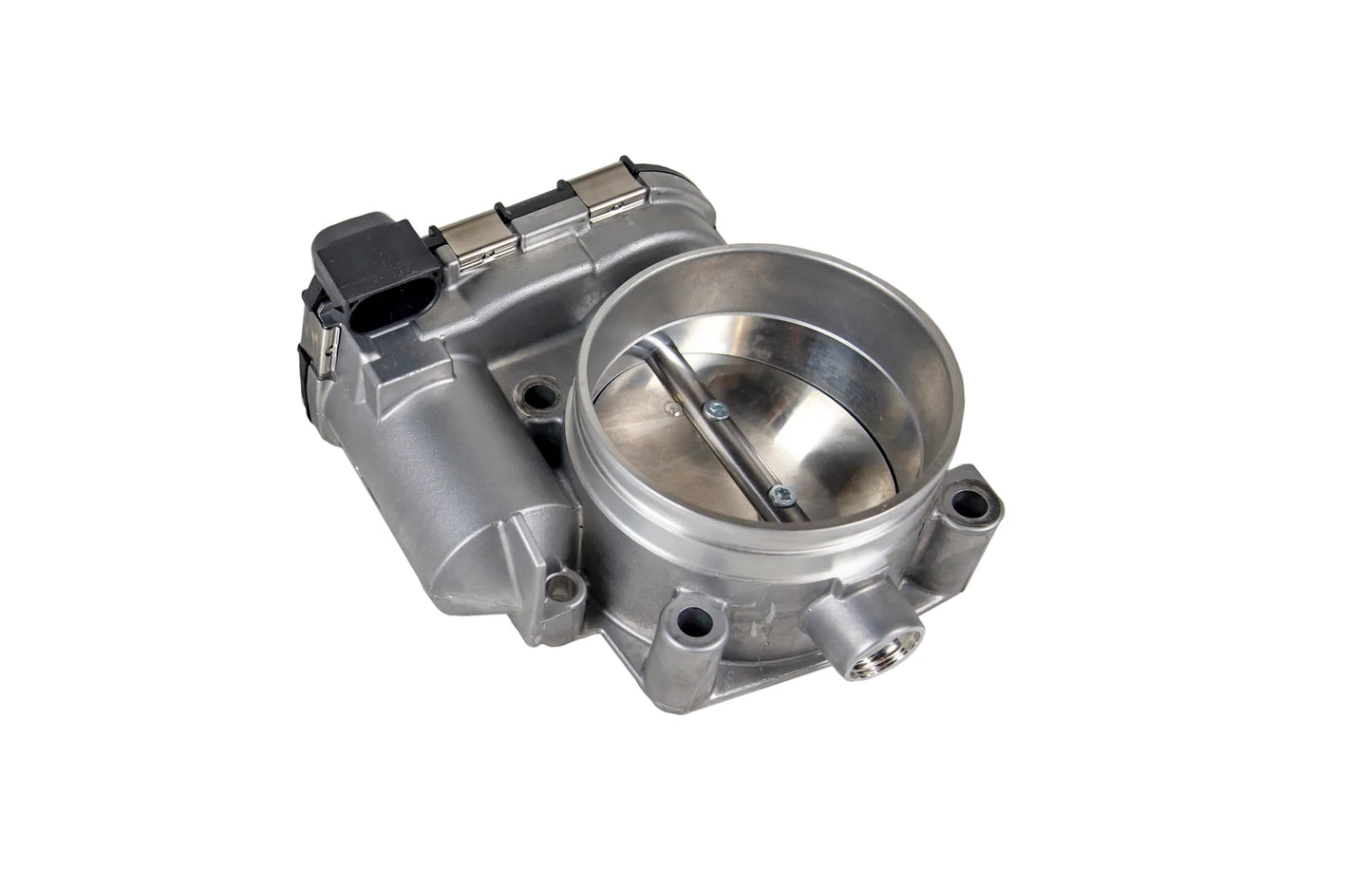

- 74mm Bosch drive-by-wire throttle body
- Carbon/nylon 3D printed throttle body adapter with hardware
- 3” cold-air intake with filter
- NC hydraulic power steering kit
- 4-2-1 304 stainless steel race header
- KPower fuel rail
- Fuel line kit, E85 compatible
- Braided steel clutch line
- Upper coolant neck specifically designed for the NC chassis
- Hybrid Racing thermostat inlet plug (or upgrade to heater kit)
- Eccentric idler pulley, billet aluminum
- Accessory belt
- Haltech Elite 1500 ECU, with NC base calibration
- Haltech CAN wideband sensor and controller
- Motorsports grade engine wiring harness, 100% plug and play
- Chassis wiring adapter box
- ECU and wideband controller mounting bracket
- Bosch oil pressure and temperature sensor with adapter
- Alternator extension cable
- Optional A/C kit that utilizes factory NC compressor
- Optional 3" race exhaust system
- Optional Exedy stage 1 clutch (5-speed or 6-speed manual transmission)
Important Notes:
- All products are designed for off-road motorsports use only. Users are responsible for complying with all local laws in your province.
- Our engine wiring harness is designed for 2004-2008 K24A sensors, including the crank sensor, knock sensor, and injectors. The A/C compressor connector is for a factory NC unit.
- If you plan on using injectors other than OEM K24A injectors, please specify at checkout and we’ll swap in the appropriate injector sub-harness free of charge.
- These engine mounts fit the following engine blocks: K24A2, K24A3, K24A4, K24A8, K20Z3 and the JDM K24A. They do NOT fit K20A2, K20Z1, or K24A1 blocks due to incompatible bolt-hole locations on the left side of the block. Please make sure you source the correct block for your project.
KPower Recommended Supporting Parts:
- K24A2 NC MX5 Swap OEM Parts Package
- K24A2 Engine Sensor Package
- AWR 62 motor mounts
- Unit2 Fabrications "K24 balance shaft" oil pan
- Unit2 Fabrications "K20 Oil pump" oil pan for K20 Oil pump conversion builds
- Fluidampr Harmonic Balance crankshaft pulley
Send us an e-mail if you'd like a price quote on any of these supporting parts, as we have not added them to our website yet.
